Alpha Audio MX-5S
- Normaler Preis
- $999.00 USD
- Normaler Preis
-
$1,049.00 USD - Verkaufspreis
- $999.00 USD
- Grundpreis
- pro
Verfügbarkeit für Abholungen konnte nicht geladen werden

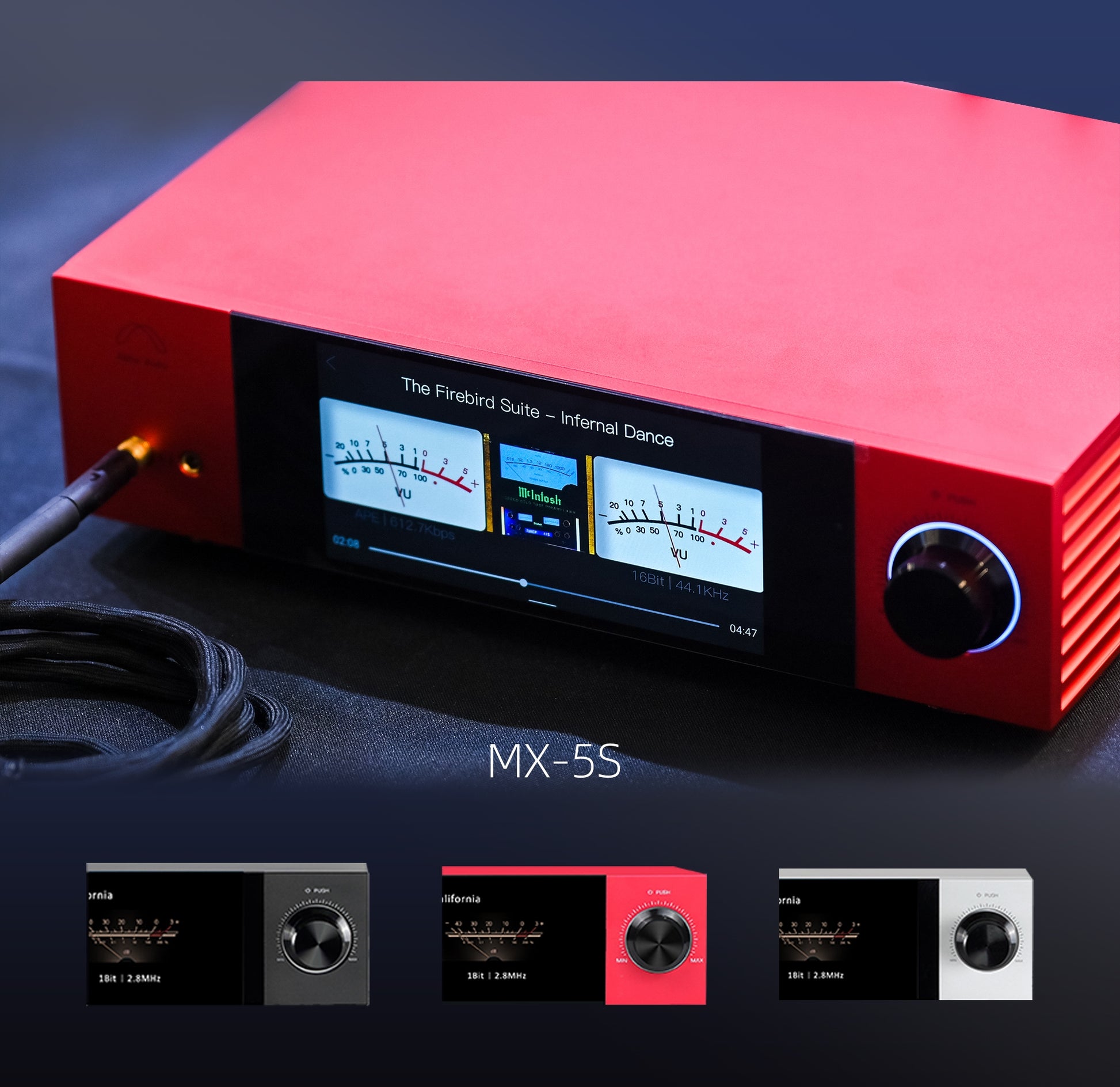

MX-5S Music Streamer
Alpha-Audio: With over 15 years of experience, we are based in the city of innovation, Shenzhen, China, and specialize in the development of HiFi streamers.
We are dedicated to conducting in-depth research in the field of digital audio and have been accumulating core technologies, such as digital audio codecs and key audio algorithms.
We also offer OEM services to many audio manufacturers and are proud of our audio technology solutions and products, which have been approved by tens of thousands of users.
Our commitment to this endeavor is unwavering, and it remains the mission of Alpha Audo!

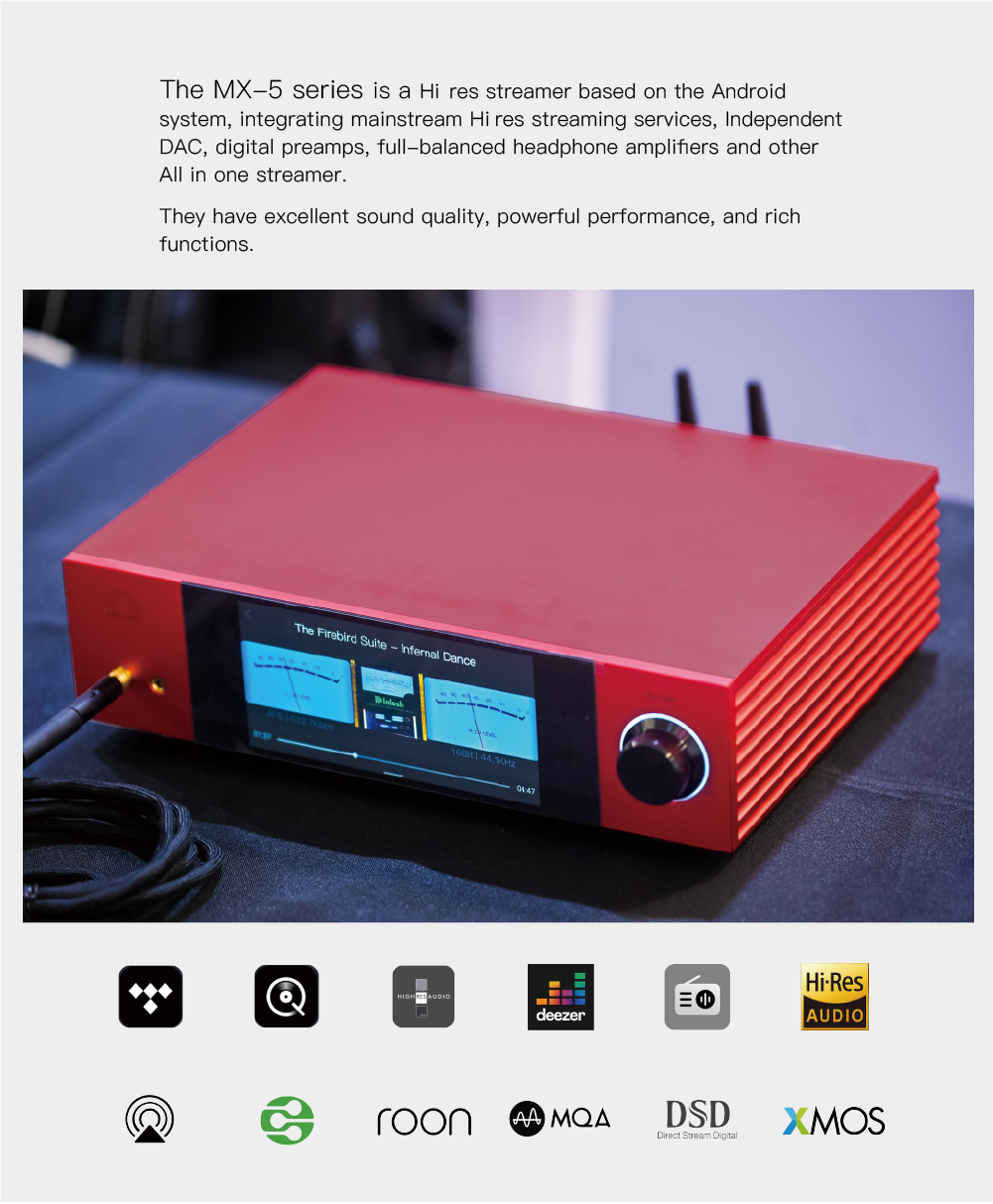

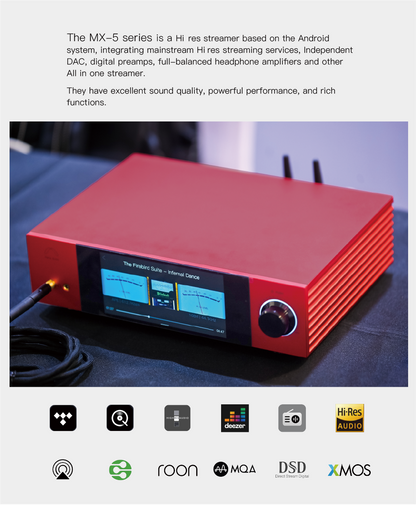

The MX-5 is the latest development in audio streaming devices

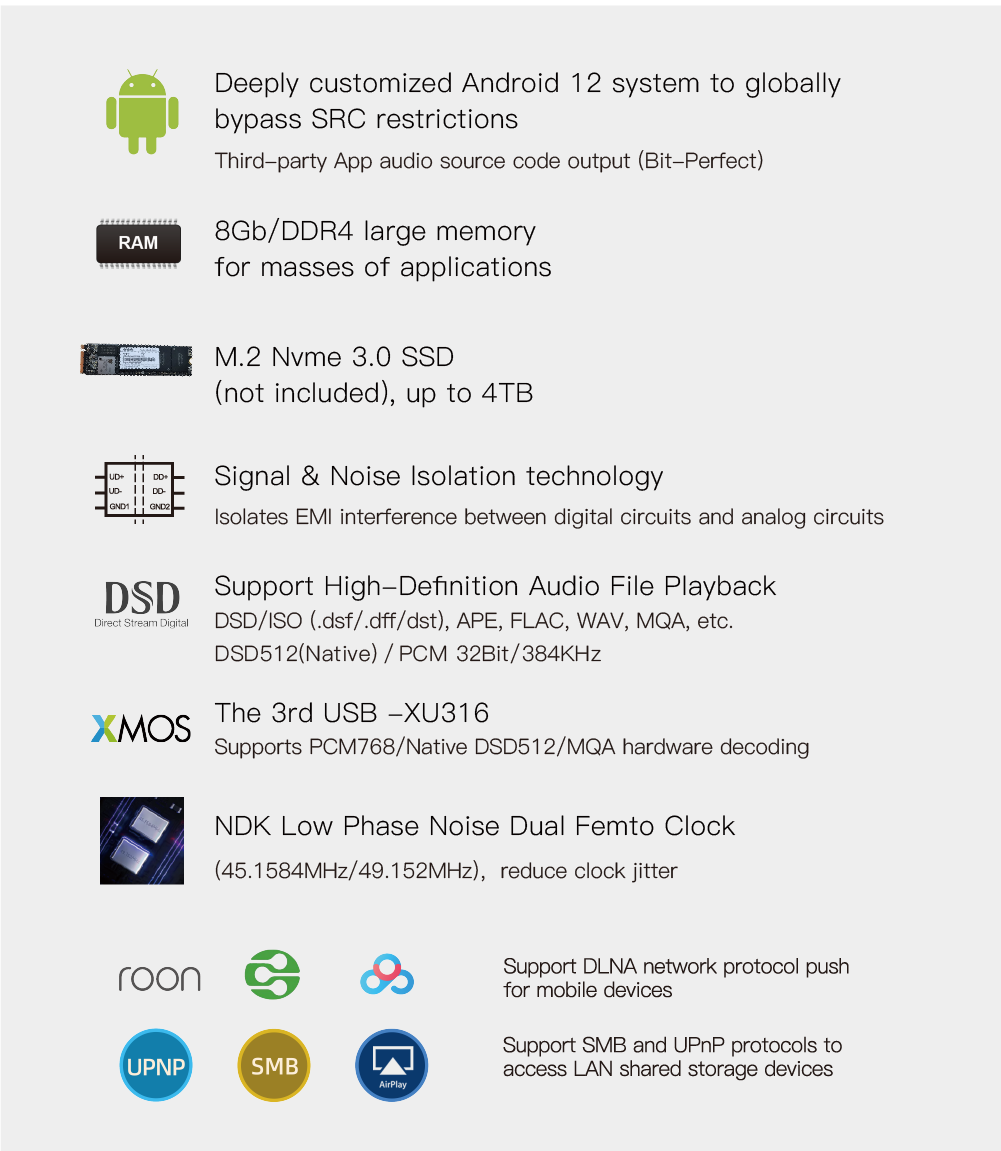

- Quad-core professional processor ARM Cortex-A55
- 8Gb/DDR4 large memory for masses of applications

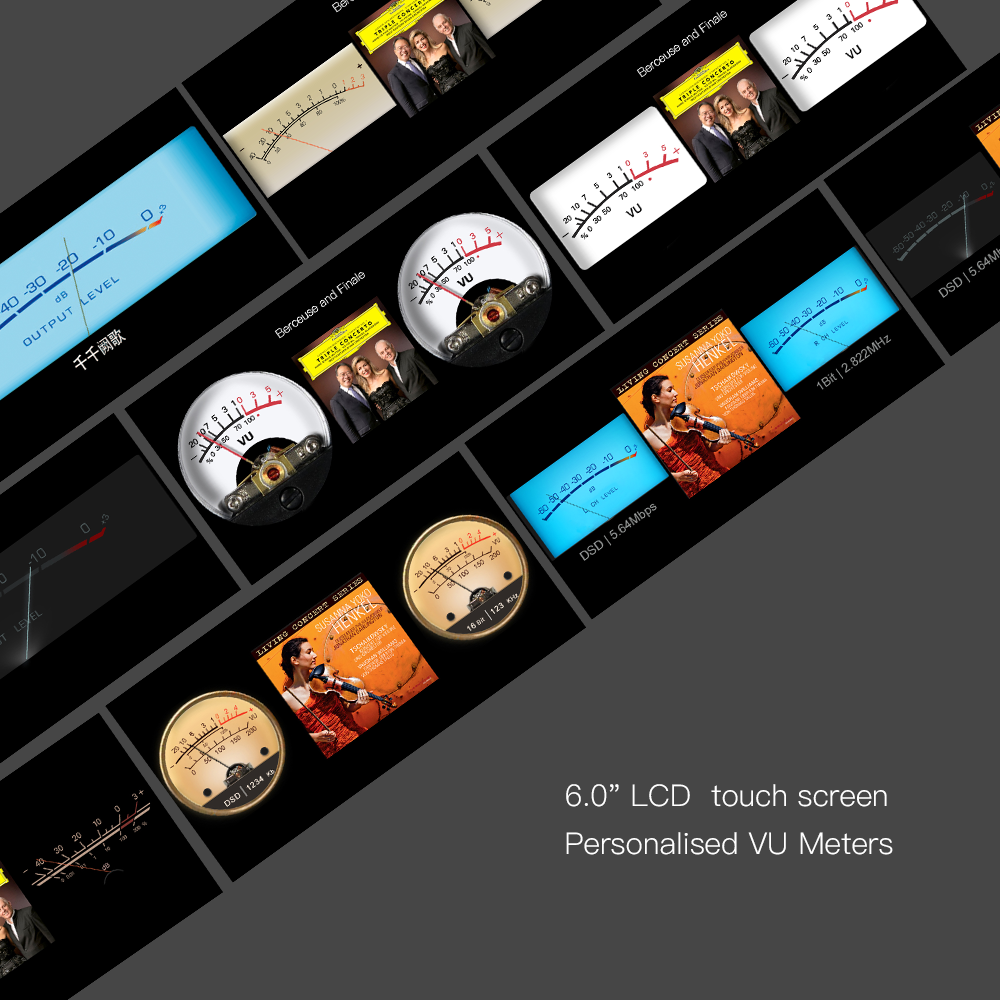

- 6-inch high-definition touch screen, more concise and rich UI interface
- Wi-Fi 6 wireless network
- M.2 Nvme 3.0 SSD (not included) up to 4TB

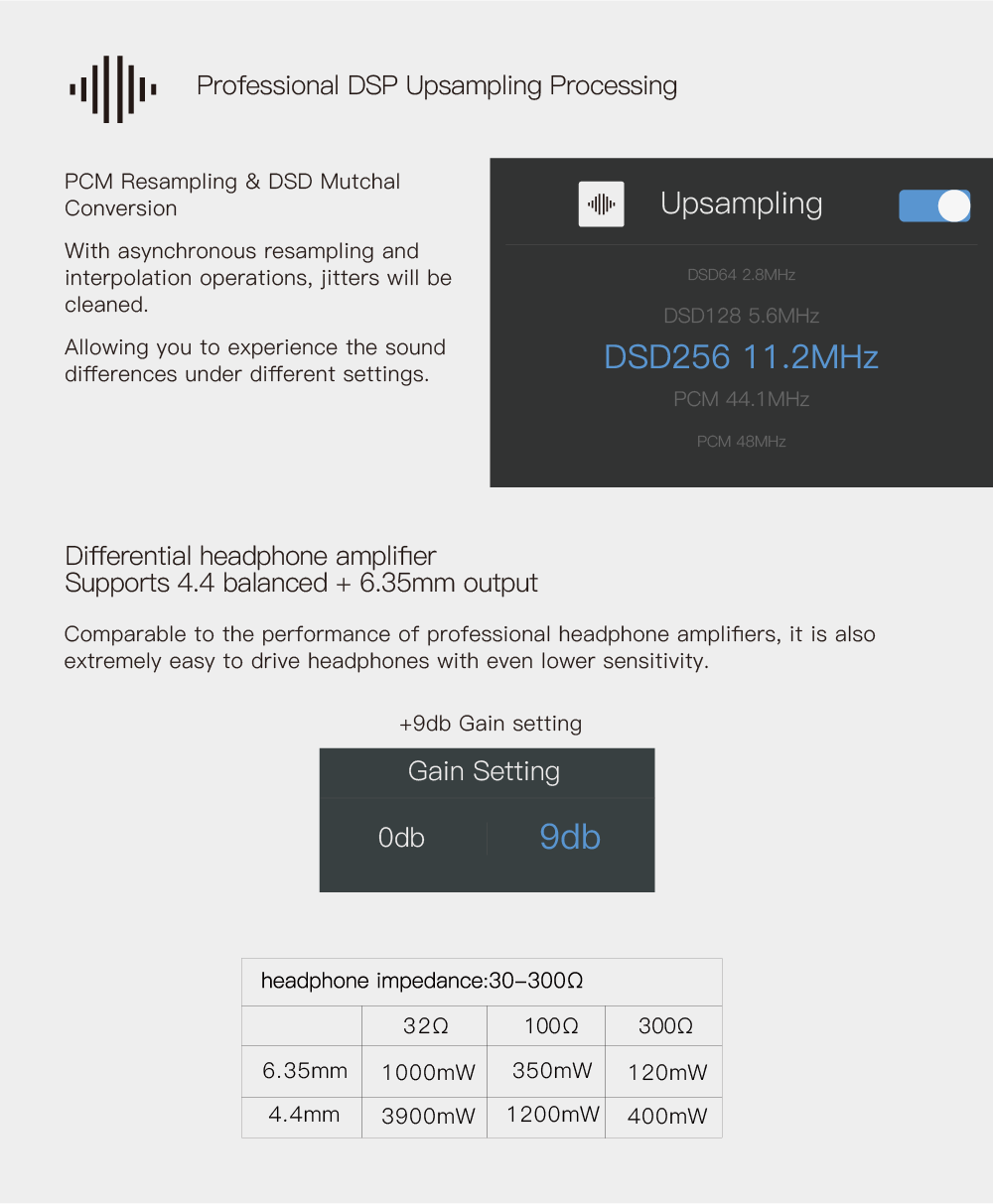

- Professional DSP Upsamplin processing, Convert DSD and PCM formats to each other format
- Signal & noise isolation technology, isolates EMI interference between digital circuits and analog circuits

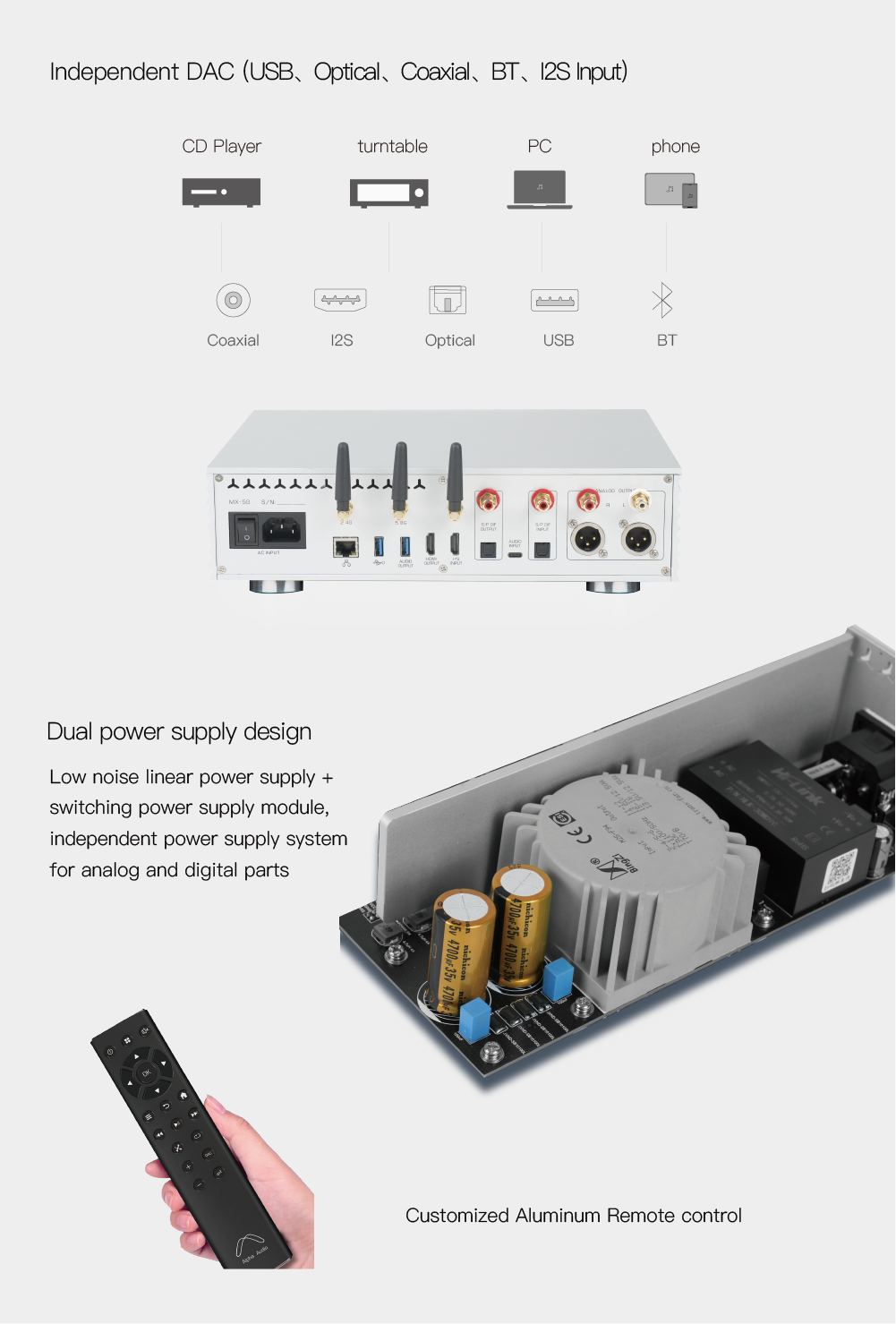

- Dual power supply design (low noise linear power supply + switching power supply module), independent power supply system for analog and digital parts
- Self-developed ultra-low noise LDO voltage regulator, noise ≤0.6μVrms(10Hz-100kHz）(LT3045 /0.8μVRMS)
- NDK low phase noise dual Femto Clock (45.1582MHz/49.152MHz), reduced clock jitter
- The 3rd USB interface XMOS-XU316, support PCM768/Native DSD512/MQA hardware decoding
- USB, Optical, Coaxial, I2S digital output Bit-perfect (without DAC)

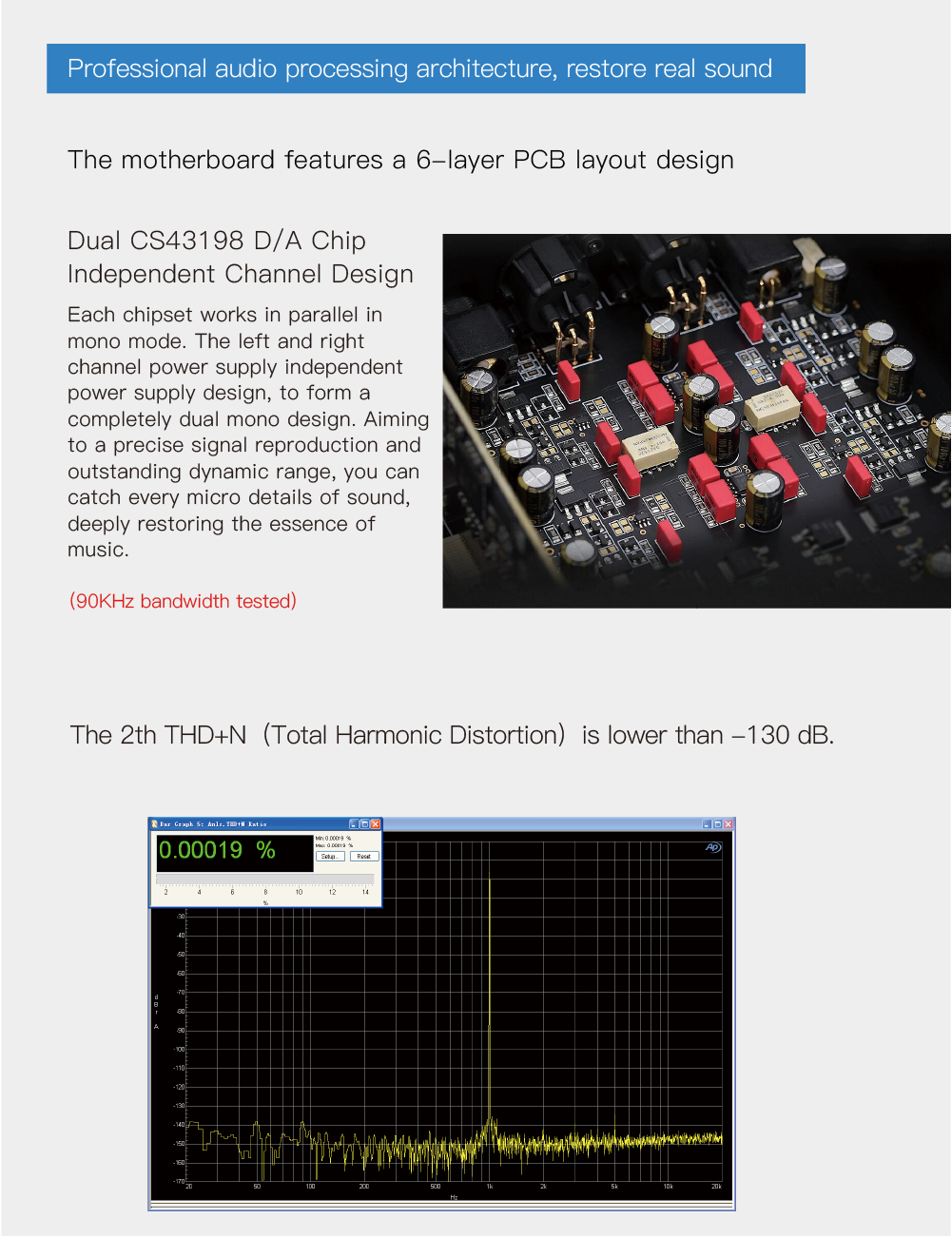

- Dual CS43198 chips decoding, fully balanced different
- 8Gb/DDR4 large memory for masses of applications
- 6-inch high-definition touch screen, more concise and rich UI interface
- Wi-Fi 6 wireless network
- M.2 Nvme 3.0 SSD (not included) up to 4TB
- Professional DSP Upsamplin processing, Convert DSD and PCM formats to each other format
- Signal & noise isolation technology, isolates EMI interference between digital circuits and analog circuits
- Dual power supply design (low noise linear power supply + switching power supply module), independent power supply system for analog and digital parts
- Self-developed ultra-low noise LDO voltage regulator, noise ≤0.6μVrms(10Hz-100kHz）(LT3045 /0.8μVRMS)
- NDK low phase noise dual Femto Clock (45.1582MHz/49.152MHz), reduced clock jitter
- The 3rd USB interface XMOS-XU316, support PCM768/Native DSD512/MQA hardware decoding
- USB, Optical, Coaxial, I2S digital output Bit-perfect (without DAC)
- Dual CS43198 chips decoding, fully balanced different
|
Models |
MX-5S All in one | |||
| OS | Android 12 | |||
| CPU | 4 core /2.0 G A55 | |||
| DDR | 4GB /8GB (Optional) | |||
| Display | 6-Inch touch screen | |||
| Wireless network | Wi-Fi 6 | |||
| Wired network | 100/1000Mbps | |||
| Built-in HDD socket | M.2 Nvme SSD/ 4TB | |||
| USB HDD socket | USB3.0/ 10TB | |||
|
Network Protocol |
DLNA | Supported | ||
| AirPlay | Supported | |||
| Samba | Supported | |||
| Baidu disk | Supported | |||
| OneDrive | Supported | |||
|
Digital Input |
USB | DSD512(Native) / PCM32Bit/384KHz |
||
| I2S | DSD512(Native) / PCM32Bit/384KHz | |||
| Coaxial | 24Bit/192KHz/ DoP64 | |||
| Optical | 24Bit/192KHz/ DoP64 | |||
| Bluetooth 5.1 | QCC5125 apt X -HD +LDAC | |||
|
Digital Output |
USB | DSD512(Native) / PCM32Bit/384KHz | ||
|
I2S |
|
DSD512(Native) PCM32Bit/384KHz |
|
|
| Coaxial | 24Bit/192KHz/DoP | |||
| Optical | 24Bit/192KHz/DoP | |||
| Bluetooth 5.0 | 24Bit/48KHz | |||
| HDMI | Supported | |||
| Audio clock | Dual Femto Clock (45.1584MHz/49.152MHz) | |||
| DSP Upsampling | Supported | |||
| DAC Chips | 2*CS43198 | |||
| Power supplyAC 110~240V 50/60Hz | Dual power supply | |||
| Dimensions | 305*220*85mm | |||
