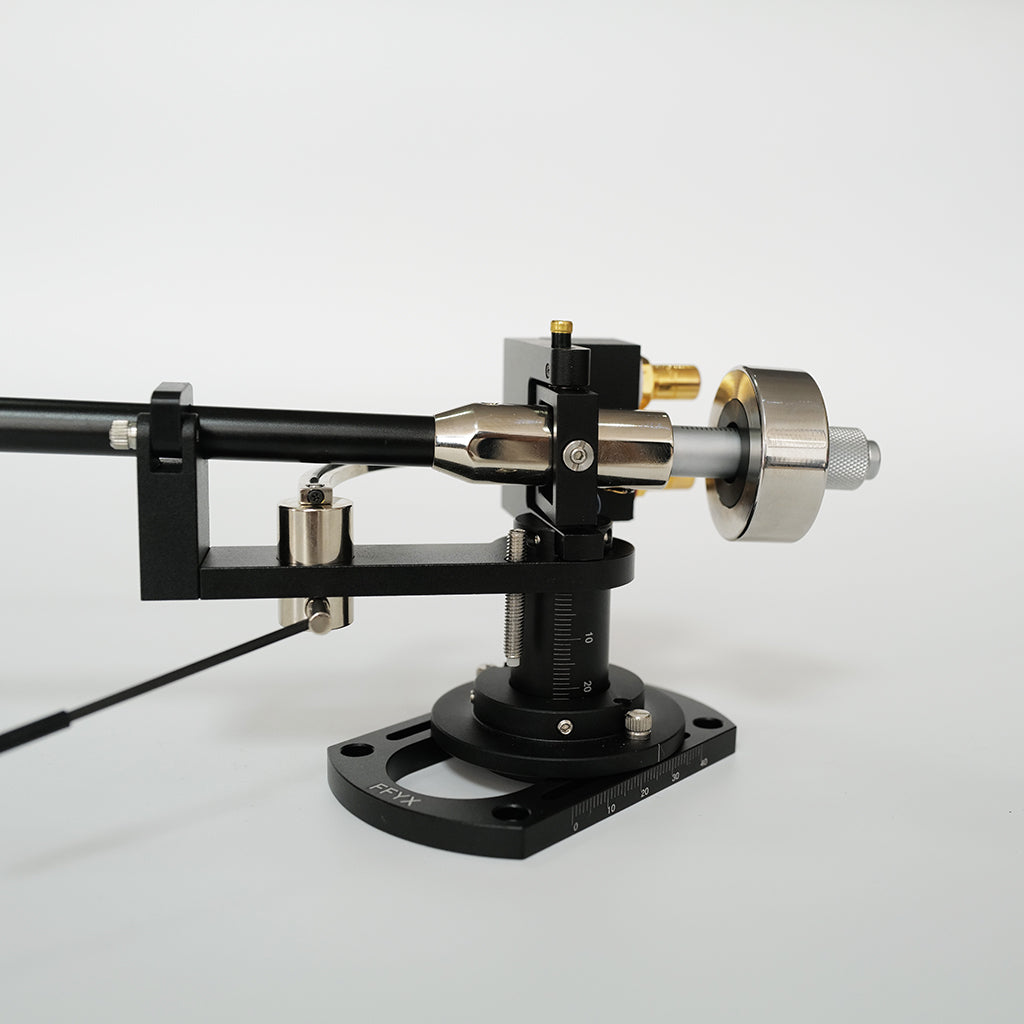

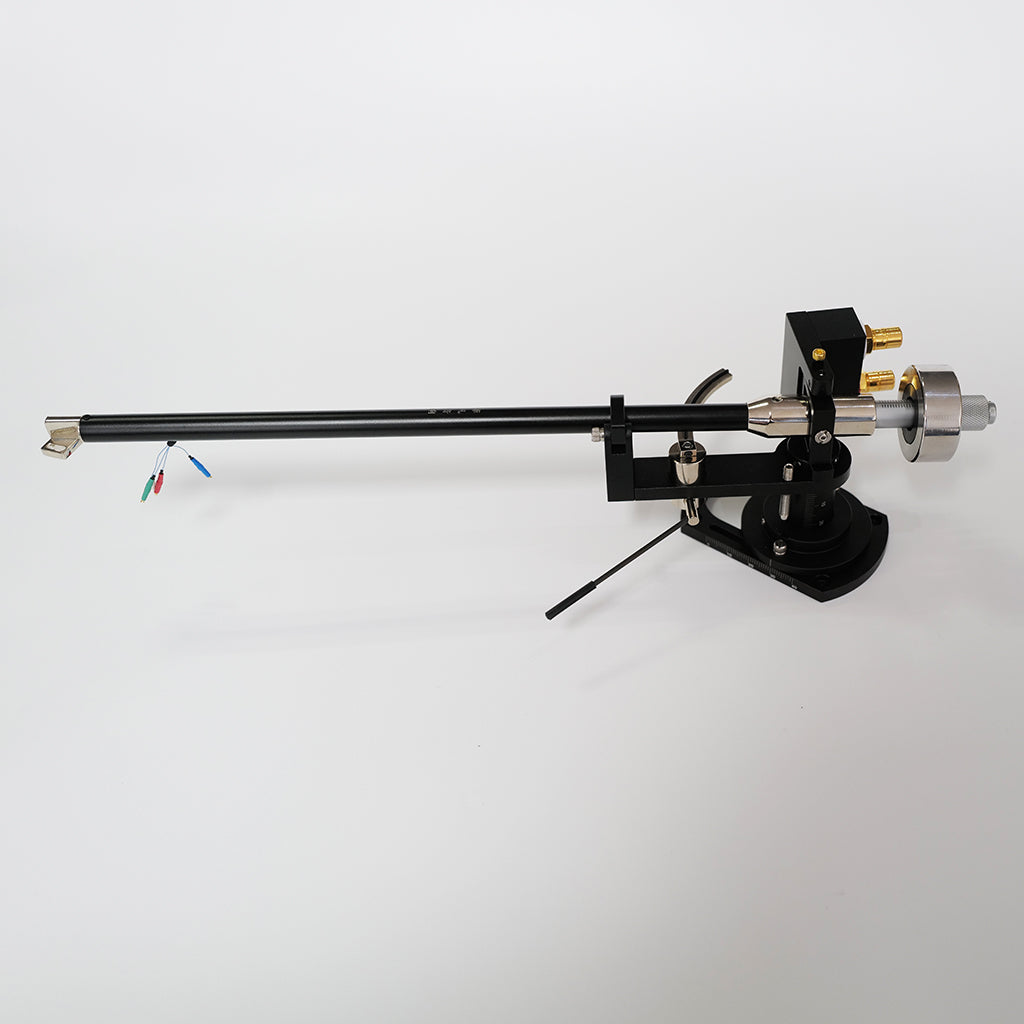

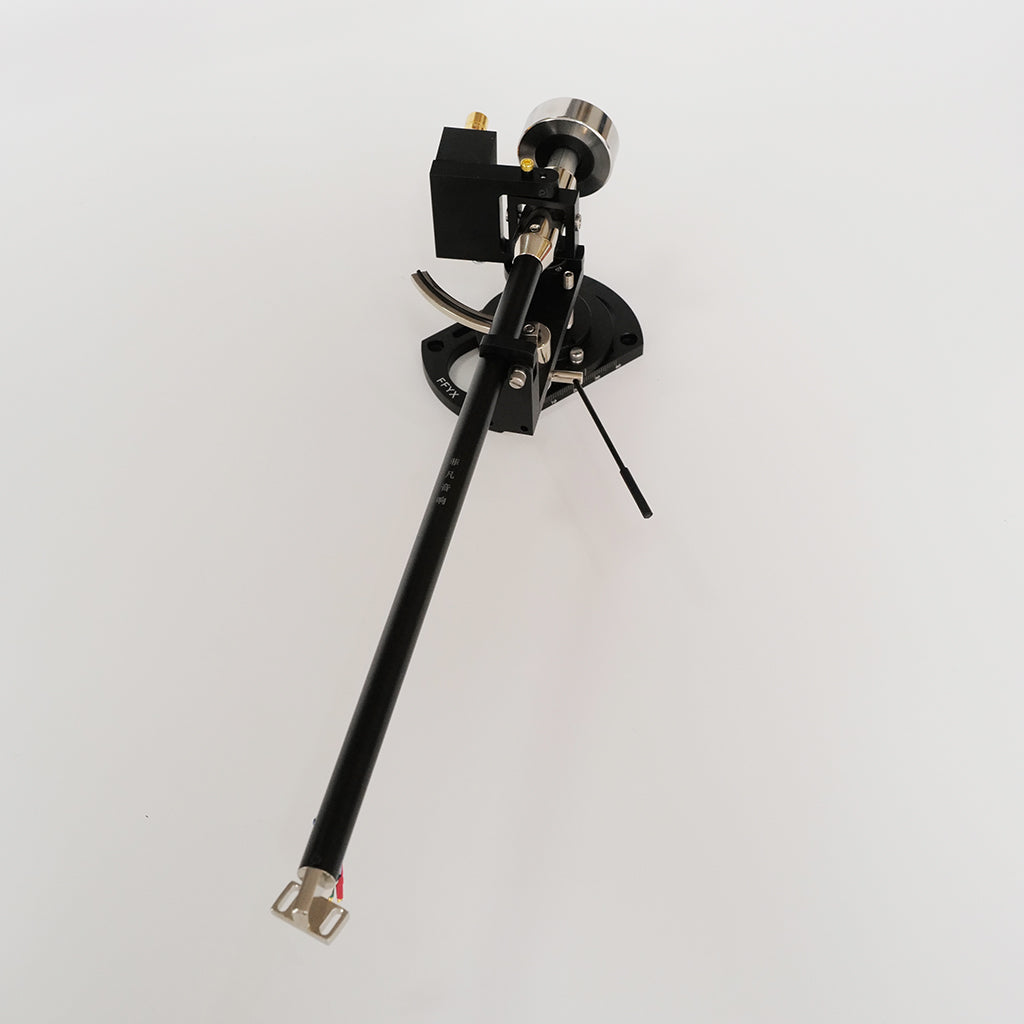

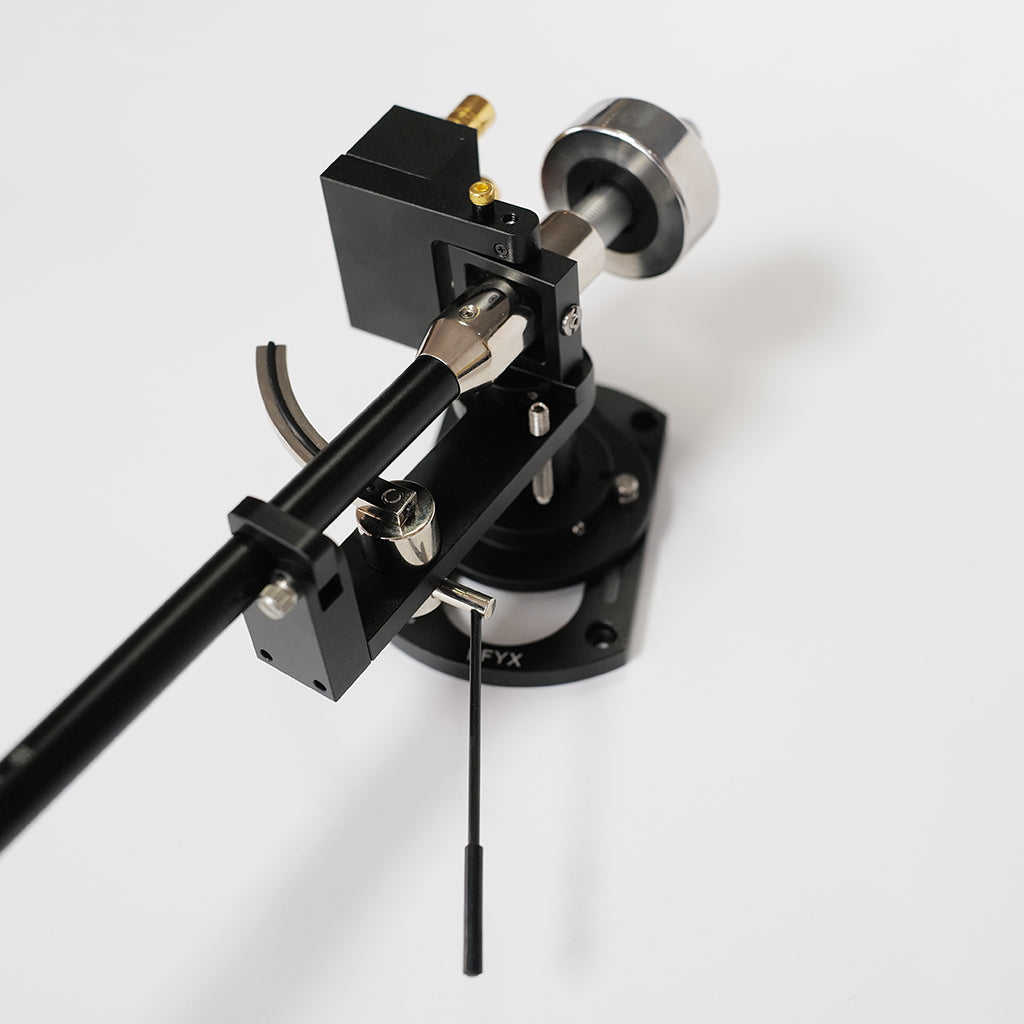

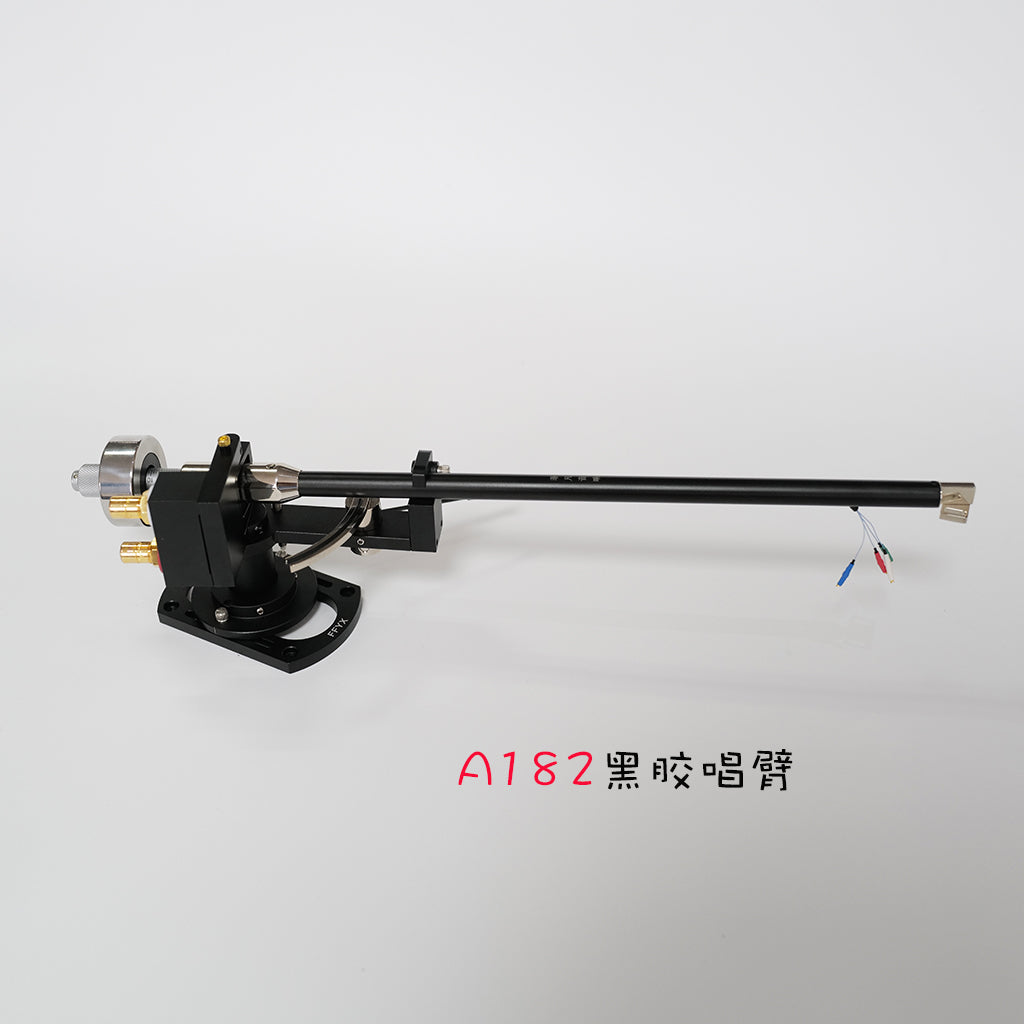

Four-point high precision bearing VTA height indication Wheelbase relative amount indication Through the rear knob to adjust the tracking precision Top screw adjusts side sliding We can offer 9", 10", 12" version.
Technical parameters: VTA Adjustable Accurately
9-inch version Pivot to spindle: 222 mm Effective length: 237 mm Overhang: 15 mm
10-inch version Pivot to spindle: 233.5 mm Effective length: 250 mm Overhang: 16.5 mm
12-inch version Pivot to spindle: 295.6mm Effective length: 308 mm Overhang: 13.2 mm
This item will be shipped directly from our warehouse in China. Delivery time 15 to 20 days. Price includes shipping costs. We deliver tax paid to the following countries.
We are official reseller and service partner of FFYX!
